LED Grow Light Distance Guide: Finding the Optimal Height for Maximum Yield
In indoor agriculture, lighting layout is just as important as selecting the right light source.
If installed at the wrong height, even high-performance LED grow lights cannot deliver optimal results.
The distance between the LED fixture and the plant canopy determines:
Light intensity (PPFD)
Light uniformity
Coverage area
Energy efficiency
Plant growth quality

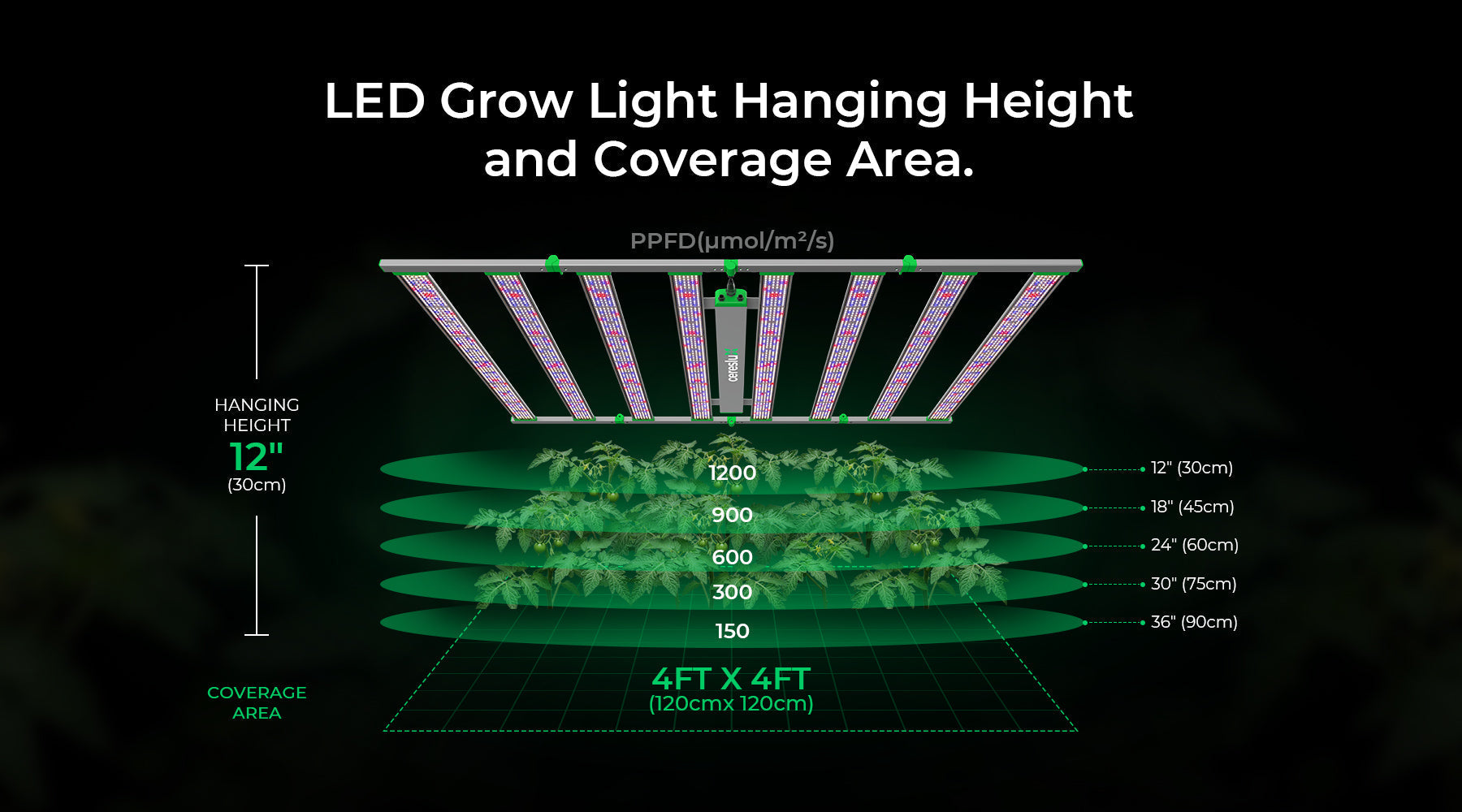

Understanding the relationship between hanging height and coverage area helps growers maximize yields while avoiding unnecessary energy waste.
Key Topics:
1. Why is LED grow light hanging height important?
2. Understanding LED grow light coverage area
3. Recommended hanging heights for different growth stages
4. How to adjust height based on PPFD requirements
5. How hanging height affects light uniformity
6. Multi-light layout design for commercial farms
7. Smart LED systems simplify height adjustments
1. Why is LED Grow Light Hanging Height Important?
The Relationship Between Distance and Light Intensity
Light intensity decreases as the distance between the fixture and plants increases.
When the LED grow light is too close:
● Plants may receive excessive light intensity
● Leaf stress may occur
● Heat concentration increases
● Growth can become uneven
When the light is too high:
● PPFD levels decrease
● Plants receive insufficient light energy
● More fixtures may be required
Finding the right height creates a balance between light intensity and coverage.
2. Understanding LED Grow Light Coverage Area
How Coverage Area Is Determined
The coverage area of an LED grow light depends on:
1. Fixture Power
Higher wattage fixtures usually cover larger growing areas.
Example:
| LED Power | Typical Coverage |
|---|---|
| 100W–300W | Small grow tents |
| 400W–600W | Medium cultivation areas |
| 700W–1000W+ | Commercial grow rooms |
Actual coverage often depends on the PPFD requirements and the type of crops being cultivated.
2. Beam Angle and Light Distribution
Modern LED grow lights use optimized optical designs to distribute light evenly.
A wider beam angle provides:
● Larger coverage area
● Better edge lighting
● More uniform canopy growth
3. Recommended Hanging Heights for Different Growth Stages
Different plant growth stages require different light distances.
Seedling Stage
Recommended height:
60–90 cm above canopy
Advantages:
● Gentle light intensity
● Prevent young plants from stress
● Encourage healthy root and leaf development
Vegetative Growth Stage
Recommended height:
45–75 cm above canopy
Benefits:
● Increased light intensity
● Supports leaf expansion
● Promotes stronger plant structure
Flowering / Fruiting Stage
Recommended height:
30–60 cm above canopy
Benefits:
● Higher PPFD demand
● Supports flower and fruit development
● Improves production efficiency
4. How to Adjust Height Based on PPFD Requirements?
Use PPFD Measurements Instead of Guessing
PPFD is the amount of usable light reaching plants.
Professional growers use PPFD meters to adjust LED height.
Higher PPFD requirements:
● Increase light intensity
● Lower fixture height carefully
● Adjust dimming levels
Lower PPFD requirements:
● Raise fixture height
● Reduce intensity
● Prevent unnecessary energy consumption
5. How Hanging Height Affects Light Uniformity
Avoid Hot Spots and Dark Areas
Incorrect installation can create:
Hot Spots
Caused by:
● Lights too close
● Narrow distribution angle
● Poor fixture arrangement
Results:
● Uneven plant growth
● Leaf damage
● Lower quality harvest
Dark Zones
Caused by:
● Excessive hanging height
● Insufficient fixture quantity
● Poor layout design
Results:
● Weak plant development
● Reduced productivity
6. Multi-Light Layout Design for Commercial Farms
Large cultivation facilities require strategic lighting placement.
Recommended practices:
✔ Maintain proper spacing between fixtures
✔ Overlap light distribution patterns
✔ Measure PPFD across the canopy
✔ Adjust height according to crop requirements A well-designed lighting layout improves:
● Light uniformity
● Crop consistency
● Energy efficiency
7. Smart LED Systems Make Height Adjustment Easier
Modern systems with intelligent controls allow growers to optimize lighting conditions with ease, offering features.
Smart features include:
● 0–100% dimming
● Spectrum adjustment
● Automated schedules
● PPFD monitoring integration
This provides greater flexibility throughout the entire crop cycle.
Conclusion
Choosing the correct LED grow light hanging height and coverage area is essential for maximizing indoor farming efficiency.
The optimal installation depends on:
● LED power
● Crop type
● Growth stage
● PPFD requirements
● Growing space design
By combining proper hanging distance with smart lighting control, growers can achieve better light distribution, healthier plants, and higher productivity.
